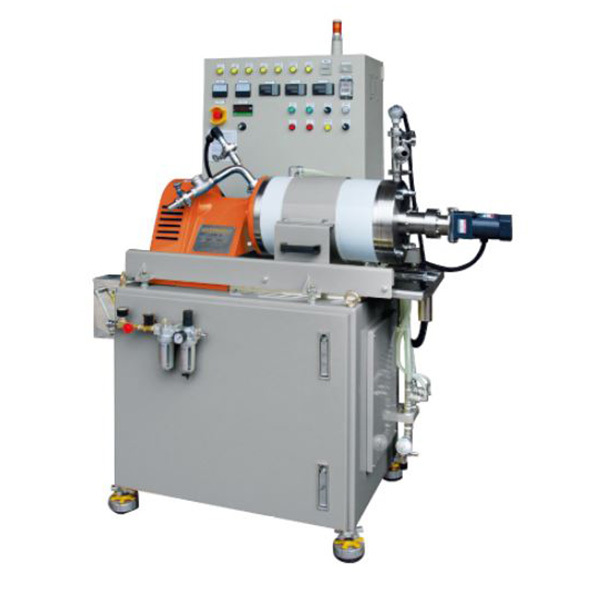

SDP15 Serial Enclosed Horizontal Bead (Sand) Mill
Number:
Features:
1.The Horizontal Bead (Sand) Mill is a serial horizontal wet dispersator for producing super fine products ranging from low viscosity to high viscosity. The grinding materials are specially treated for erosion resistance. Parts are easy to replace, maintain and operate. 2.The machine employs a dynamic gap separation device consisting of super hard tungsten carbide alloys for exceptional wear-resistance. Rotation in high rpm ensures beads mobility against stagnation, automatic cleaning of the machine ensures excellent separation. 3.The ground material is fed from the front of the machine and flows to the back, filling and leaving the grinding cylinder from the top, allowing thorough grinding of the material without any dead corner within the cylinder. 4.In case there is a need for frequent color change, or for change between different materials, an additional solvent draining valve or removal rail can be installed to facilitate draining the grinding through or replace the ground material.

.Applications: Coating material, ink factory, food industry, dyes, pharmaceutical plant, agriculture, chemicals, cosmetics, etc. .Grinding medium: Chrome steel balls, Zirconium balls, glass balls, ceramic balls, etc.









 Item / Model
Unit
SDP15
 Loading capacity
l
15
 Motor
HP/KW
20/15
 Peripheral speed
m/s
10-11
 Beads filling capacity
kg
18
 Production rate
GA/Hr
25
 Weight
kgs
650
