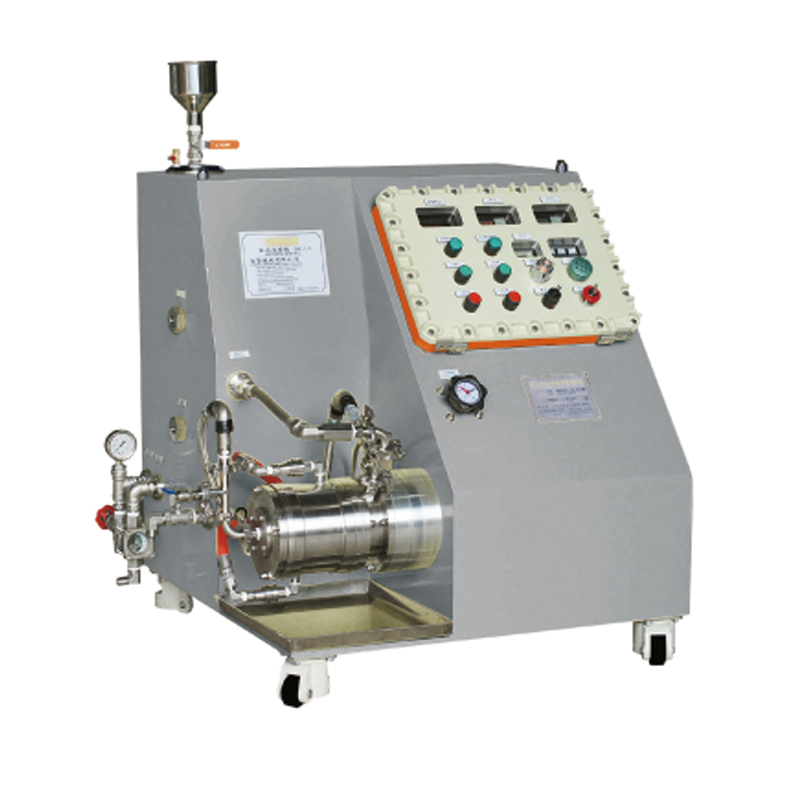

    SAE-2 Serial Enclosed Horizontal Bead (Sand) Mill
    Number:
    Features:
    1.Newly designed “cartridge type mechanical seal” for Serial Enclosed Horizontal Bead Mill features a longer lifespan and easy replacement of consumables. 2.Innovative design of separate blade arrangement allows high shearing force for wet grinding and dispersion in various realms, achieving the required fineness quickly.(The current capacity is big.The strainer separable leaves 0.3mm the attrition bead) This is most applicable to nano-class milling. 3.Unique design of the interface allows easy operation, supreme wear resistance and exceptionally low wear and tear. A comprehensive cooling system gives better heat dissipation and improves lowering of the temperature. A very low failure rate enables production interruption, production cost deduction and productivity elevation. 4.This machine is explosion proof.
    Inquiry
    • Description

     Item / Model
    Unit
    SAE-2
     Loading capacity
    l
    2
     Motor
    HP/KW
    3/2.2
     Peripheral speed
    m/s
    10-11
     Beads filling capacity
    kg
    1000C.C
     Production rate
    GA/Hr
    4.5
     Weight
    kgs
    500
